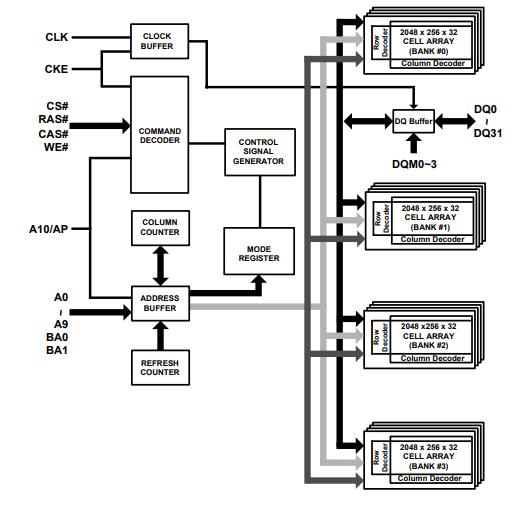

Ramsun's Etron EM638325BK SDRAM is a high-speed CMOS synchronous DRAM with 64 megabits.It is internally configured as four channels of 512K x 32 DRAM with synchronous interface(all signals are recorded on the positive edge of the clock signal,CLK).Each 512K×32-bit bank of DRAM is organized,such as 2048 rows by 256 columns by 32 bits.EM638325 provides programmable read or write burst length of 1,2,4,8 or full page with burst termination option.DRAM auto-precharge can enable the function to provide a precharge sequence that is started by a self-timed line at the end of a burst.Refresh function,automatic or automatic refresh is easy to use.By having a programmable mode register,the system can choose the appropriate mode to maximize its performance.These low-power DRAM are very suitable for applications requiring high performance,memory bandwidth.




DRAM density:64Mb

Organization:2Mx32

DRAM speed:200/166/143.

Vdd interface:3.3V,LVTTL.

DRAM package:90 ball FBGA

Fast access time:5/5.4/5.4 ns.

Fast clock rate:200/166/143 MHz.

Four internal banks(512K x 32-bit x 4 banks)

Pet-name ruby ambient temperature:0~70 degrees Celsius

Attending 4096 refresh cycles/64 ms

Single+3.3v 0.3v power supply

Complete synchronous operation

Internal pipeline architecture

Burst stop function

Automatic refresh and self-refresh


Low-power synchronous DRAM EM638325TS-5G

Low power synchronous DRAM EM638325TS-6G

Low power synchronous DRAM EM638325TS-7G

Low power synchronous DRAM EM638325BK-5H

Low power synchronous DRAM EM638325BK-6H

Low power synchronous DRAM EM638325BK-7H


Keywords:DRAM
